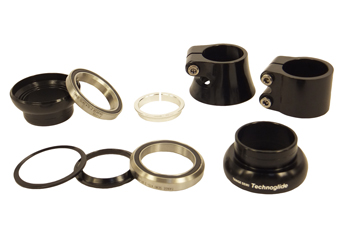

Quill


Technical Information


Material Height Information
Binding Column A6061-T6 Light Alloy 25mm ID 25.4mm / 2 Binding Bolts
Top Cone A6061-T6 Light Alloy 25.4mm ID 25.6mm / Pre-assembled Seal rings / 1 Binding Bolt
Compression Ring A6061-T6 Light Alloy 5mm ID 25.4mm
Upper Stationary Cup A6061-T6 Light Alloy 20.8mm Insertion 30.0 +0.1 -0/ 30.2 +0.1 -0/ 12.5mm depth
Lower Stationary Cup A6061-T6 Light Alloy 23.5mm Insertion 30.0 +0.1 -0/ 30.2 +0.1 -0/ 12.5mm depth
Crown Cone A7075-T6 Light Alloy 4.8mm Insertion 27.0 +0 -0.1/ 26.4mm +0 -0.1
Cartridge Bearing x 2 SUJ2 Steel #1501 38.1/27.2/6.3
Lower Seal Ring Nylon Plastic 1.5mm
Temporary Anchor Nut Set for assembling the headset
