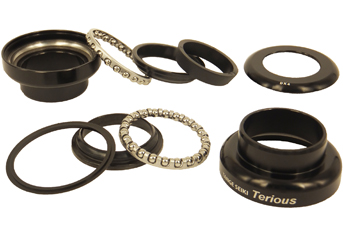

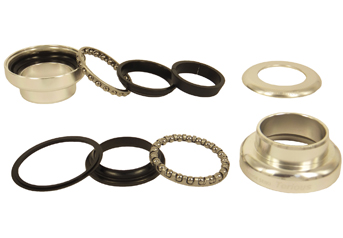

DX4

Lightweight and strong duraluminum light alloy construction

Fully Sealed Mechanism


Technical Information


Material Height Information
Top Cover A6061-T6 Light Alloy 4.6mm ID 28.8mm
Compression Ring Nylon Plastic 6.5mm ID 28.6mm
Top Cone SS41 Steel 5.3mm ID 30.0mm
Upper Stationary Cup A6061-T6 Light Alloy 19.8mm Insertion 34.0 +0.1 -0/ 10mm depth
Lower Stationary Cup A6061-T6 Light Alloy 19.8mm Insertion 34.0 +0.1 -0/ 10mm depth
Crown Cone SS41 Steel 6.2mm Insertion 30.0 +0 -0.1
Lower Seal Ring Nylon Plastic 3.0mm
Ball Retainer x 2 Chorome Balls Steel #800 5/32"x 22 Balls
