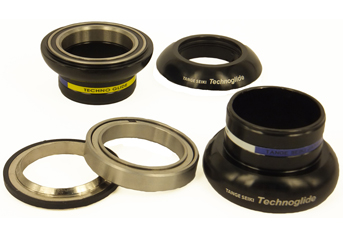

J-6

Ultimate Durability and Performance

CNC precision machined to very tight tolerances for ultimate performance and wear.

A7075-T6 super light alloy with fully sealed stainless steel bearing and crown cone.

Tange Seiki exclusive EZ system on upper unit.


Technical Information


Material Height Information
Top Cover A7075-T6 Light Alloy 10.4mm ID 28.6mm/ Pre-assembled Compression Ring and seal ring (pat.p)
Upper Stationary Cup A7075-T6 Light Alloy 20.9mm Insertion 34.0 +0.1 -0/ 12.5mm depth/ Press Inserted Bearing
Lower Stationary Cup A7075-T6 Light Alloy 23.2mm Insertion 34.0 +0.1 -0/ 12.5mm depth/ Press Inserted Bearing
Crown Cone SUS450C Stainless Steel 5.4mm Insertion 30.0 +0 -0.1/ With Seal Ring
Press Inserted Bearing SUS450C Stainless Steel #1200 42/30.5/7
Lower Seal Ring Nylon Plastic 1.0mm
