J-2

Quality and performance

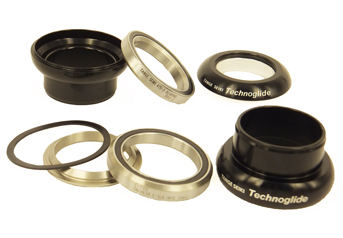

CNC precision machined light alloy with Tange Seiki 4T5 fully sealed cartridge bearing.

Tange Seiki exclusive EZ system on upper unit.


Technical Information


Material Height Information
Top Cover A6061-T6 Light Alloy 10.4mm ID 28.6mm/ Pre-assembled Compression Ring and seal ring (pat.p)
Upper Stationary Cup A6061-T6 Light Alloy 20.9mm Insertion 34.0 +0.1 -0/ 12.8mm depth
Lower Stationary Cup A6061-T6 Light Alloy 23.2mm Insertion 34.0 +0.1 -0/ 12.8mm depth
Crown Cone SS41 Steel 5mm Insertion 30.0 +0 -0.1
Cartridge Bearing x 2 SUJ2 Steel #1508 41/30.2/6.3
Lower Seal Ring Nylon Plastic 1.0mm
