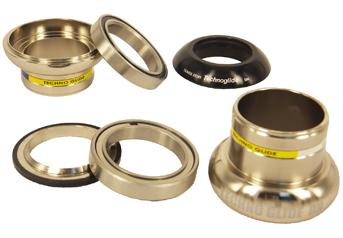

DH

Ultimate Durability and Performance

CNC precision machined Heat-treated stainless steel cups and crown race.

Tange Seiki Technoglide stainless steel, fully sealed bearings.

Tange Seiki exclusive EZ system on upper unit.


Technical Information


Material Height Information
Top Cover A7075-T6 Light Alloy 11.0mm ID 28.6mm / Pre-assembled compression ring (pat.p)
Upper Stationary Cup SUS450C Stainless Steel 22.0mm Insertion 34.0 +0.1 -0/ 12.5mm depth
Lower Stationary Cup SUS450C Stainless Steel 25.9mm Insertion 34.0 +0.1 -0/ 12.5mm depth
Crown Cone SUS450C Stainless Steel 5.4mm Insertion 30.0 +0 -0.1/ Pre-assembled Seal ring
Press Inserted Bearing x 2 SUS450C Stainless Steel #1200
