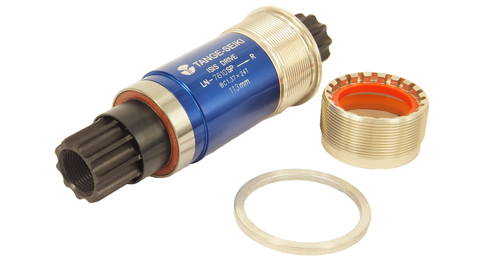

LN-7610SP

Fully CNC machined Cr-Mo Hollow ISIS spline axle

CNC machined light alloy cups and body

108, 113 and 118mm axle length for 68 and 73mm shell width


Technical Information


Material Height Information
Axle SCM415 Cr-Mo 108/113/118 ISIS type
Right Hand Cup A7075-T6 Light Alloy 18.7mm 1.37"x24T L/H thread
Left Hand Cup A7075-T6 Light Alloy 19.0mm 1.37"x24T R/H thread
Body A7075-T6 Light Alloy 48.0mm Blue Anodize
Stopper x2 SCM415 Cr-Mo 9.7mm Press inserted to axle
Bearing x3 SUJ2 Bearing steel 31x22x7 Press inserted to axle
